PA66 MaterialTemperature ResistantCustom ColorsInnovative Design

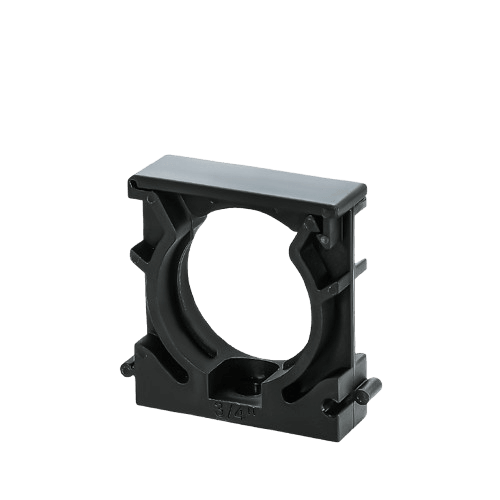

Bellows Fixed Bracket PA66
Professional PA66 Bellows Fixed Bracket
Temperature-resistant nylon brackets for secure bellows conduit mounting
$0.65 - $2.06
All sizes included (USD)
All sizes AD10 to AD54.5 • Starting from $0.65/unit
Professional PA66 (polyamide) bellows fixed bracket with superior durability and temperature resistance. Features precision-engineered design for secure mounting, customizable colors, and innovative connection design to eliminate old-style covers for streamlined installation.
Fast Installation
Quick-connect design saves time
International Shipping
Worldwide delivery via FedEx • Currency auto-converts to USD (International)
Technical Specifications
Material
Nylon PA66 (polyamide)
Working Temperature
-40°C to +110°C
Certifications
Key Features
- Made from PA66 (polyamide) for superior strength
- Operating temperature range: -40°C to +110°C
- Available in black, custom colors available
- Eliminates old-style covers with innovative connection design
- Precision-engineered mounting points

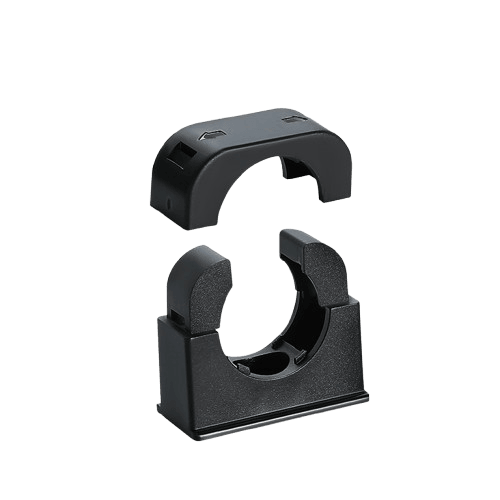

- Two-piece bracket design for versatile installation
Complete Size Chart
Available in 10 different configurations.
| Conduit Size | Accommodated Pipes | H (mm) | B (mm) | T (mm) | M (mm) | A (mm) |
|---|---|---|---|---|---|---|
| AD10.0 | 1/4 | 30 | 23 | 12.5 | 4 | 6.5 |
| AD13.0 | G/R | 30 | 23 | 12.5 | 4 | 6.5 |
| AD15.8 | 3/8 | 30 | 23 | 12.5 | 4 | 6.5 |
| AD18.5 | 35 | 30 | 15 | 5 | 6.5 | |

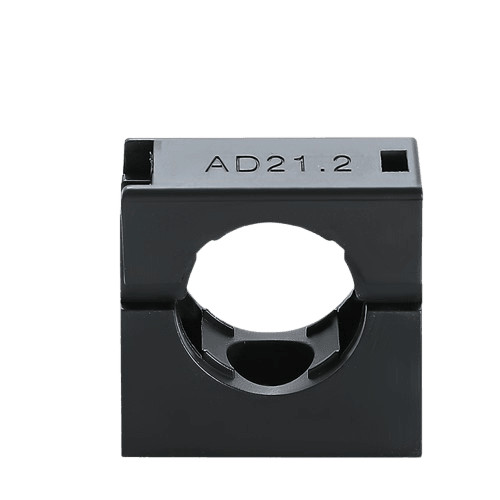

| AD21.2 | 1/2 | 35 | 30 | 15 | 5 | 6.5 |
| AD25.0 | 35 | 30 | 15 | 5 | 6.5 | |
| AD28.5 | 3/4 | 42 | 38 | 16 | 5 | 11.5 |
| AD34.5 | 1 | 51 | 43 | 16 | 6 | 11.5 |
| AD42.5 | 1 1/4 | 61 | 51 | 16 | 6 | 11.5 |
| AD54.5 | 2 | 74 | 64 | 20 | 6 | 11.5 |
