Robot Bellows Waterproof Joint with 360° Rotation - Straight Through Type
High performance 360° rotary waterproof joint designed for robot applications. Features fixed robot bellows design that maintains waterproof performance even when pulled, protects cables from damage, and extends service life. Widely used in robots, manipulators, and mobile automation equipment.
Fast Installation
Quick-connect design saves time
International Shipping
Worldwide delivery via FedEx • Currency auto-converts to USD (International)
Technical Specifications
Material
PA66 (double wall) premium material
Working Temperature
-40°C to +125°C
Certifications
Key Features
- High performance 360° rotary waterproof joint
- Fixed robot bellows - maintains waterproof without distortion when pulled
- Protects cables from damage and extends service life
- Straight through design for direct cable routing
- 360° steering capability
- Waterproof, tensile, and oil-proof protection
- Suitable for continuous rotation applications
Complete Size Chart
Available in 7 different configurations.
| Conduit Size (AD) (mm) | Thread OD | Mounting Opening (mm) | Product Features |
|---|---|---|---|
| AD34.5*28 | 32 | 32 | Straight tensile/waterproof |
| AD34.5*28 | 32 | 32 | 45° tensile/waterproof |
| AD34.5*28 | 32 | 32 | 90° tensile/waterproof |
| AD42.5*36 | 47 | 47 | Straight tensile/waterproof |
| AD42.5*36 | 47 | 47 | 45° tensile/waterproof |
| AD54.5*48 | 63 | 63 | Straight tensile/waterproof |
| AD54.5*48 | 63 | 63 | 45° tensile/waterproof |
Tags:
Related Products
Robot Bellows Waterproof Joint with 360° Rotation - 45° Type
High performance 360° rotary waterproof joint designed for robot applications with 45° angled config...
Robot Bellows Waterproof Joint with 360° Rotation - 90° Type
High performance 360° rotary waterproof joint designed for robot applications with 90° elbow configu...

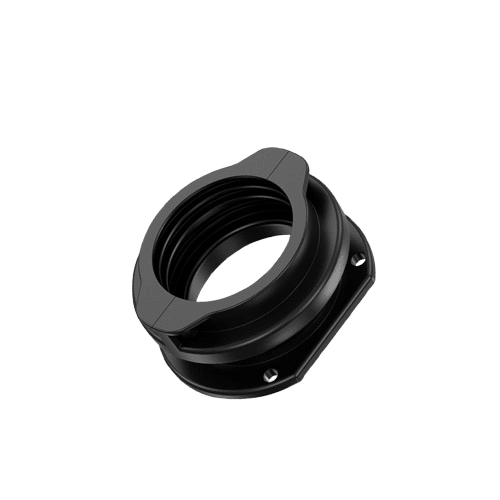

Bellows Flange Joint
