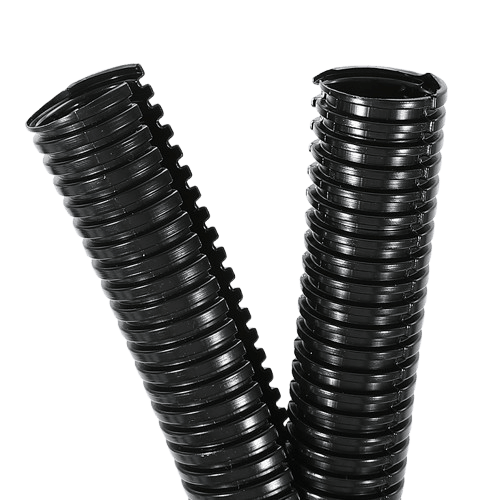

Bellows Double Split Conduit

Flexible bellows double split conduit available in PE, PP, and PA materials. Features innovative double split design for easy cable insertion and removal while maintaining excellent protection and flexibility. Ideal for dynamic applications requiring frequent cable access.

Fast Installation

Quick-connect design saves time

International Shipping

Worldwide delivery via FedEx • Currency auto-converts to USD (International)

Technical Specifications

Material

PP flame retardant polypropylene/PA66 (modified) nylon material

Working Temperature

-40°C~+120°C for a short time up to 130°C

Certifications

Key Features

Material: PP flame retardant polypropylene/PA66 (modified) nylon material
Operating temperature: -40°C~+120°C for a short time up to 130°C
Product certification: International building materials quality supervision -GB/T14828.4-1993, European environmental protection
RoHs supply range: flame retardant, FV-O
Product structure: Both inside and outside wavy, double-layer design
Product color: black, other colors can be customized (according to the need to open)
Product characteristics: good flexibility, surface gloss, chemical corrosion resistance
Application: important for automotive wiring, can also be used for machine tool machinery, automation instruments, motor motors, to protect cables and wires from external wear and random damage

Complete Size Chart

Available in 11 different configurations.

Conduit Size	ID*OD (mm)	Min Bending Radius (mm)	Packing Quantity
AD14	8.9*13.8	55	50
AD16	11*16.1	60	50
AD20	12.8*18.7	75	50
AD22	16*21.5	90	50
AD25	20.0*25.8	105	50
AD32	24.8*31.5	125	50
AD37	27.3*35.5	140	25
AD42	31.4*41.9	170	25
AD54	43.3*54.5	190	25
AD80	67*80	230	20
AD106	92*106	280	20
