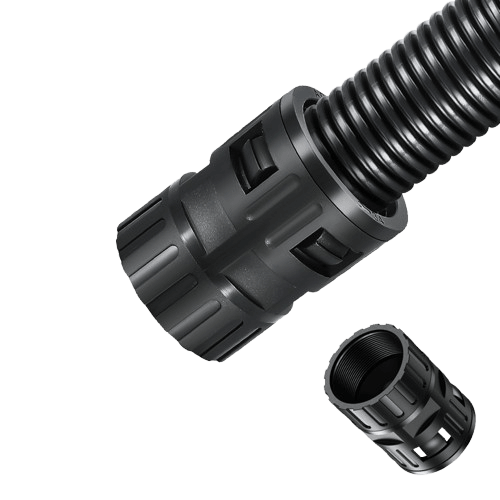

Bellows Quick Insert Internal Thread Joint

💰Pricing

R5 - R25

Prices per unit • All sizes from AD10 to AD54.5

Starting from

Small sizes AD10

Professional UL approved nylon PA66 quick insert internal thread joint with fire rating UL94V-2. Features special clamping wave design for super fast installation and superior tensile strength.

Fast Installation

Quick-connect design saves time

International Shipping

Worldwide delivery via FedEx • Currency auto-converts to USD (International)

Technical Specifications

Material

UL approved nylon PA66 (fire rating UL94V-2), customizable

Working Temperature

Static: -40°C to 100°C, Dynamic: -20°C to 80°C, Instant heat resistance to 120°C

Certifications

Key Features

📦 All sizes from AD10 to AD54.5 available
Made of UL approved nylon PA66 with fire rating UL94V-2
Special clamping wave design for super fast plug and unload
Improve installation efficiency with superior tensile strength
Operating temperature: Static -40°C to 100°C, Dynamic -20°C to 80°C
Instant heat resistance up to 120°C
Color options: Black, gray, other colors can be customized
Quick insert design for easy installation and maintenance

Complete Size Chart

Available in 10 different configurations.

Conduit Size	Internal Thread AG (mm)	Thread Length Gl (mm)	Std Pkg (Pcs)
AD10	M13x1.5	0	0
AD13	M16x1.5	16	50
AD15.8	M20x1.5	16	50
AD18.5	M22x1.5	16	50
AD21.2	M25x1.5	17	50
AD25	M30x2.0	17	50
AD28.5	M30x2.0	17	50
AD34.5	Standard	0	0
AD42.5	Standard	0	0
AD54.5	Standard	0	0
