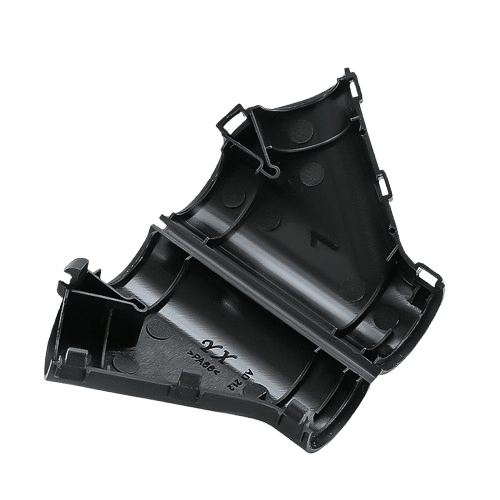

Bellows Y-Open Tee Joint

💰Pricing

R9 - R29

Prices per unit • All sizes from AD10 to AD34.5

Starting from

Small sizes AD10

Advanced Y-open tee joint connector with angled branch configuration for efficient flow distribution. Made of UL approved nylon PA66 with fire rating UL94V-1, featuring KT thickened design for enhanced durability and superior connection reliability in multi-directional bellows systems.

Fast Installation

Quick-connect design saves time

International Shipping

Worldwide delivery via FedEx • Currency auto-converts to USD (International)

Technical Specifications

Material

UL approved nylon PA66 (fire rating UL94V-1)

Working Temperature

-40°C to +100°C

Certifications

Key Features

📦 Bulk discounts available for volume orders
✓ All prices include VAT, customs duty, and shipping costs
Made of UL approved nylon PA66 (fire rating UL94V-1)
KT model is made of imported nylon 66 material, aging resistant; Not through our products, if there are quality problems, our company will not be responsible
The product for the automobile special fixed buckle, in strict accordance with the TS16949 quality system production, can also be used for automation equipment wire harness split use, KT for light, with latch, latch separately purchased, fixed hose, will not trip, anti-aging
KTC is thickened, without latch (passed SGS environmental ROHS2.0 test)
Flame retardant grade: V1
Protection class: IP65
Note: For special specifications, please contact the factory

Complete Size Chart

Available in 24 different configurations.

Bellows Y-Open Tee Joint Structure Reference

Bellows Y-Open Tee Joint Structure Chart showing dimensional references

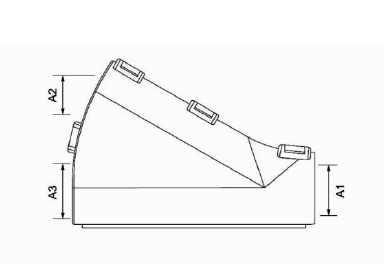

Structure diagram showing dimensional measurements corresponding to the size chart below

Fitting A1 (mm)	Fitting A2 (mm)	Fitting A3 (mm)	Length (mm)	Altitude (mm)
AD10	AD10	AD10	47.2	36.5
AD13	AD13	AD13	55	37.5
AD15.8	AD15.8	AD15.8	56	43.8
AD21.2	AD21.2	AD21.2	64	51.3
AD25	AD25	AD25	69	58.5
AD10	AD7	AD7	40.5	29
AD15.8	AD13	AD13	56	42.2
AD13	AD10	AD10	45.5	37.5
AD15.8	AD15.8	AD13	55	40
AD18.5	AD15.8	AD10	40.2	34.8
AD21.2	AD18.5	AD10	59	43
AD21.2	AD13	AD13	43.5	37.2
AD15.8	AD15.8	AD13	64.2	49
AD21.2	AD15.8	AD15.8	59	46
AD21.2	AD21.2	AD13	60.5	46
AD21.2	AD21.2	AD15.8	64.2	48
AD25	AD21.2	AD13	52	46
AD25	AD21.2	AD15.8	60	47.5
AD28.5	AD21.2	AD13	55	49
AD28.5	AD21.2	AD15.8	55	49
