Galvanized Metal Conduit

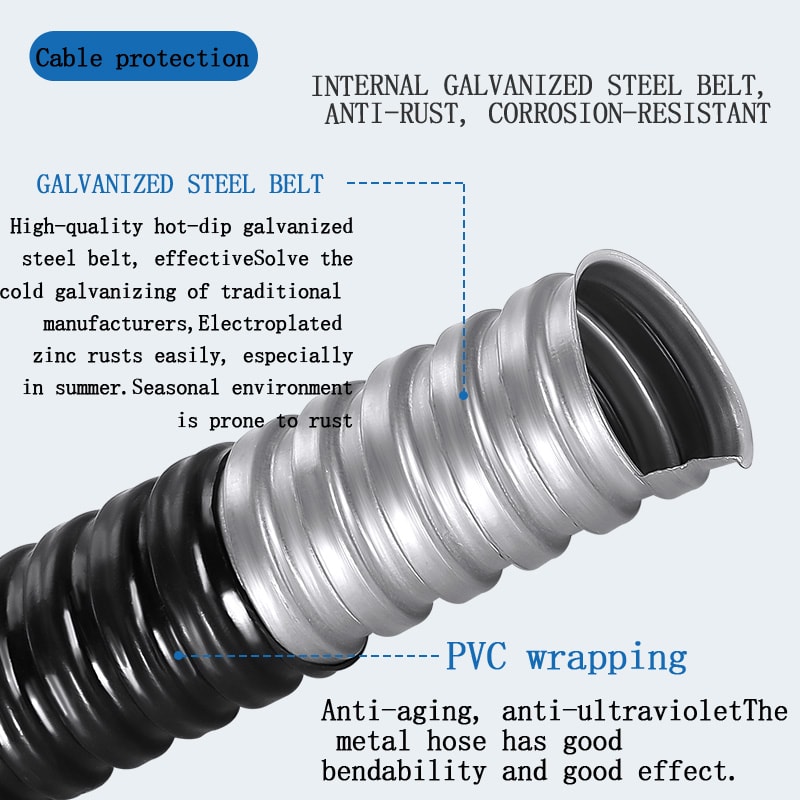

Heavy-duty galvanized metal conduit with hot-dip galvanized steel strip interior and PVC exterior coating. Provides superior protection against corrosion, impact, and electromagnetic interference. Features IP68 protection level and operates in -25°C to +90°C temperature range.

Fast Installation

Quick-connect design saves time

International Shipping

Worldwide delivery via FedEx • Currency auto-converts to USD (International)

Technical Specifications

Material

Hot-dip galvanized steel strip interior, PVC exterior coating

Working Temperature

-25°C to +90°C

Certifications

Key Features

Hot-dip galvanized steel strip for superior corrosion resistance
PVC exterior coating for additional protection
Available in black, gray, and custom colors
Excellent electromagnetic interference (EMI) shielding
Waterproof and weatherproof construction
High mechanical strength and impact resistance
First insert wire into tube, then connect with hose connector

Complete Size Chart

Available in 13 different configurations.

Metric φ	G System	Inner Diameter Min (mm)	Inner Diameter Max (mm)	Outer Diameter Min (mm)	Outer Diameter Max (mm)	Std Pkg (Pcs)
10	9.9	9.9	10.2	10.2	13	50
12	12.3	12.3	12.6	12.6	15.4	50
13	13.3	13.3	13.6	13.6	15.4	50
15	14.5	14.5	14.8	14.8	17.4	50
16	16.2	16.2	16.5	16.5	19.4	50
20	20.4	20.4	20.7	20.7	24.4	50
25	25.5	25.5	26	26	29.6	50
32	32.7	32.7	33.2	33.2	37.1	25
38	38.5	38.5	39	39	44.7	25
50	51.0	51	51	51	57.2	25
64	62.3	62.3	63	63	70.3	10
75	74.4	74.4	76.9	76.9	83.3	10
100	97.5	97.5	98.5	98.5	108.5	10
