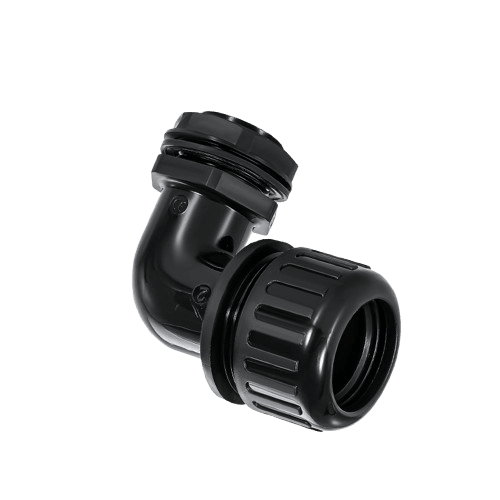

Bellows Bend Joint Waterproof Type
Advanced bellows bend joint connector with waterproof design for flexible routing applications. Features 90-degree bend capability with superior waterproof protection and durable construction for industrial environments.
Fast Installation
Quick-connect design saves time
International Shipping
Worldwide delivery via FedEx • Currency auto-converts to USD (International)
Technical Specifications
Material
A.C.F part is made of UL approved Halogen Free nylon PA66 (fire rating UL/94V-2); Part B.D is made of EPDM weather-resistant rubber
Working Temperature
-40°C to 100°C
Certifications
Key Features
- Material: A.C.F part is made of UL approved Halogen Free nylon PA66 (fire rating UL/94V-2); (V-0 fire protection approved by UL can be customized)
- Product material: A.C.F part is made of UL approved Halogen Free nylon PA66 (fire rating UL/94V-2). (V-0 fire rating nylon material approved by UL can be customized); Part B,D is made of EPDM weather-resistant rubber. (Cold and high temperature rubber can be customized; High acid and alkali resistant, chemical and corrosion resistant rubber)
- Protection level: IP68-10
- Operating temperature: -40°C to 100°C
- Product Features: This high-performance waterproof nylon wave tube box connector is perfectly resistant to water pressure, a product that can be completely airtight even when the bellows are pulled
- Products are widely used in mobile automation equipment waterproof, oil proof and airtight occasions
Complete Size Chart
Available in 13 different configurations.

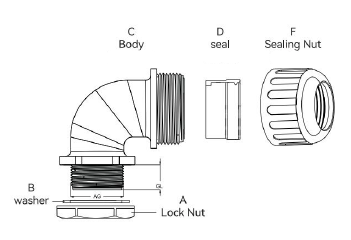

Bellows Bend Joint Structure Reference
Structure diagram showing dimensional measurements corresponding to the size chart below
| Conduit Size | Thread | Thread O.D AG (mm) | Inner Size (mm) | Thread Length GI (mm) | Total Length (mm) | Product Height (mm) | |
|---|---|---|---|---|---|---|---|
| M16*1.5 | 16 | 11.5 | 50 | ||||
| M20*1.5 | 20 | 11.5 | 61 | ||||
| M20*1.5 | 20 | 12 | 61 | ||||
| M20*1.5 | 20 | 13 | 64 | ||||
| M25*1.5 | 25 | 13 | 64 | ||||
| M25*1.5 | 25 | 13.5 | 70 | ||||
| M25*1.5 | 25 | 13.5 | 70 | ||||
| M32*1.5 | 32 | 14.5 | 80 | ||||
| M40*1.5 | 40 | 16 | 92 | ||||
| M50*1.5 | 50 | 16 | 150 | ||||
| G1/2 | 20.8 | 15 | 61 | ||||
| G1/2 | 20.8 | 15 | 60 | ||||
| G1/2 | 20.8 | 15 | 64 |
