Bellows Quick Connector (PG/M/G)
Professional quick-connect bellows connector with special clamping wave design for ultra-fast installation and superior tensile strength. Features UL-approved nylon PA66 construction with fire rating UL94V-2.
Protection Rating
IP68 rated for harsh environments
Fast Installation
Quick-connect design saves time
Size Range
AD10 to AD54.5 (comprehensive range available)
International Shipping
Worldwide delivery via FedEx • Currency auto-converts to USD (International)
Technical Specifications
Material
UL-approved nylon PA66 (fire rating UL94V-2), customizable
Working Temperature
Static: -40°C to 100°C, Dynamic: -20°C to 80°C, Heat-resistant to 100°C
Thread Types
Certifications
Key Features
- 📦 All sizes from AD10 to AD54.5 available
- ✓ Special clamping wave design for strong tensile resistance
- ✓ Ultra-fast insertion and unloading
- ✓ Improved installation efficiency
- ✓ Multiple color options available
- ✓ Customizable specifications available
Complete Size Chart
Available in 81 different configurations.

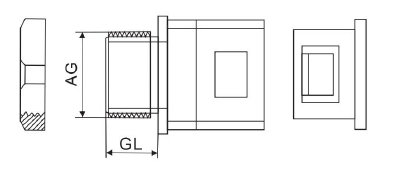

Bellows Quick Connector Structure Reference
Structure diagram showing dimensional measurements corresponding to the size chart below
M PG G | ||||||
|---|---|---|---|---|---|---|
| Conduit Size | Thread | Thread O.D AG (mm) | Inner Size (mm) | Thread Lengt GL (mm) | Total Length (mm) | Max O.D. (mm) |
| M10*1.5 | 10 | 5.5 | 9 | 34 | 18 | |
| M12*1.5 | 12 | 8 | 10 | 34 | 19 | |
| M16*1.5 | 16 | 11.5 | 10 | 34 | 24 | |
| M12*1.5 | 12 | 8 | 11 | 37 | 21.5 | |
| M16*1.5 | 16 | 11.5 | 11.5 | 37 | 24 | |
| M18*1.5 | 18 | 13.5 | 11.5 | 37 | 24 | |
| M20*1.5 | 20 | 15 | 11.5 | 37 | 29 | |
| M16*1.5 | 16 | 11.5 | 12 | 40 | 25 | |
| M18*1.5 | 18 | 13 | 11.5 | 40 | 25 | |
| M20*1.5 | 20 | 15 | 11.5 | 40 | 29 | |
| M18*1.5 | 18 | 13.5 | 12 | 41 | 30 | |
| M20*1.5 | 20 | 15.5 | 12 | 41 | 30 | |
| M22*1.5 | 22 | 17.3 | 12 | 41 | 30 | |
| M20*1.5 | 20 | 15.5 | 13 | 45 | 31 | |
| M22*1.5 | 22 | 17.5 | 13 | 45 | 31 | |
| M24*1.5 | 24 | 19.5 | 13 | 45 | 31 | |
| M25*1.5 | 25 | 20 | 13 | 45 | 35 | |
| M25*1.5 | 25 | 20 | 13.5 | 47 | 35 | |
| M25*1.5 | 25 | 20 | 13.5 | 48 | 38 | |
| M27*1.5 | 27 | 22 | 13.5 | 48 | 38 | |
Showing first 20 of 81 available sizes
Contact us for complete specifications and custom sizing options
Tags:
Related Products
Bellows Waterproof Connector (PG/M/G)
High-performance waterproof bellows connector with superior IP68 protection, perfect water pressure ...

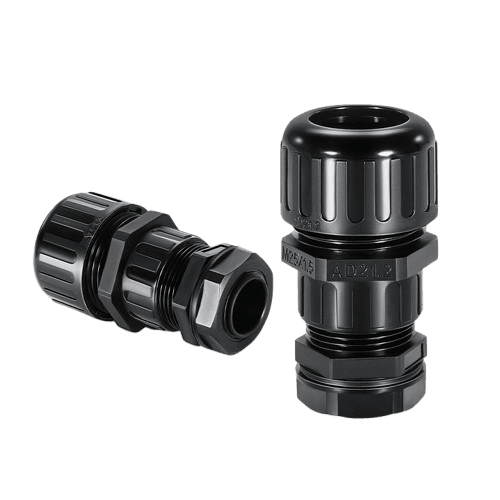

Robot Bellows Straight Through Waterproof Joint
Professional dual-function locking waterproof joint for robot bellows applications. Features special...

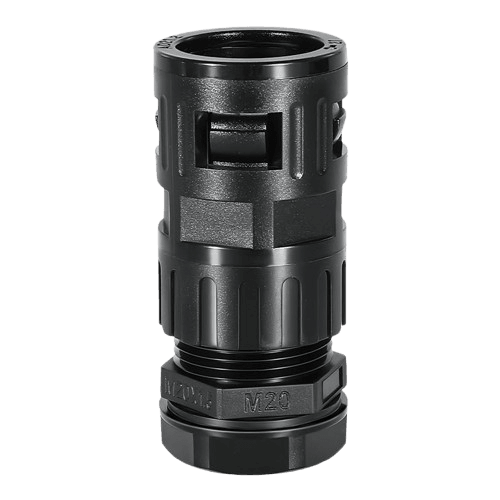

Bellows Dual Waterproof Quick Insert Connector (PG/M/G)
