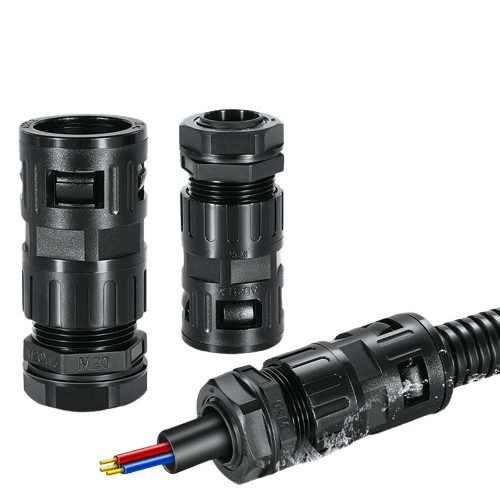

Bellows Dual Waterproof Quick Insert Connector (PG/M/G)

Professional dual waterproof quick insert bellows connector with special clamping wave design for ultra-fast installation and superior tensile strength. Features dual waterproof protection system with accommodating cable glands for enhanced sealing performance. Available in comprehensive range of thread types including Metric, PG, G(PF/BSP/PS), and NPT configurations.

Technical Specifications

Material

UL approved nylon PA66 (fire rating UL94V-2), customizable colors available

Working Temperature

Static: -40°C to 100°C, Instant heat resistance to 120°C; Dynamic: -20°C to 80°C, Instant heat resistance to 100°C

Thread Types

MetricPGG(PF/BSP/PS)NPT (customizable)

Certifications

Key Features

• Special clamping wave design for superior tensile strength
• Ultra-fast plug and unload installation system
• Dual waterproof protection for enhanced sealing
• Accommodating cable glands for versatile applications
• Improved installation efficiency with quick-insert mechanism
• Superior clamping wave pipe tensile strength
• Multiple color options available (black, gray, custom colors)
• Comprehensive thread type compatibility

Complete Size Chart

Available in 102 different configurations.

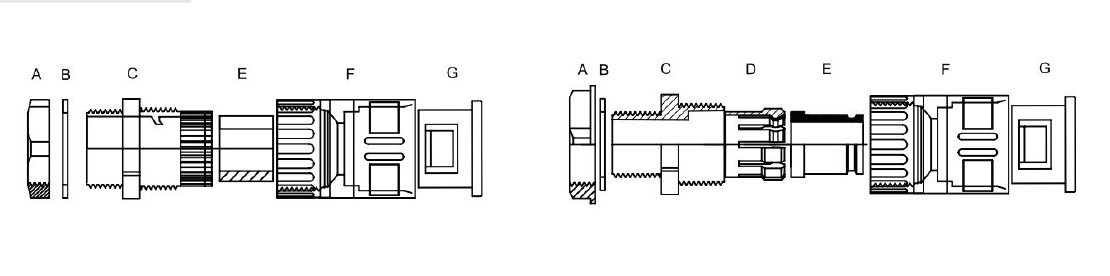

Bellows Dual Waterproof Quick Connector Structure Reference

Structure diagram showing dimensional measurements corresponding to the size chart below

M PG G
bellows	Thread	Accommodated PS Cable Glands
M12	12	1.5	5	0	0
M12	12	1.5	7	0	0
M12L	12	1.5	5	0	0
M12L	12	1.5	7	0	0
M16S	16	1.5	5	0	0
M16S	16	1.5	8	0	0
M16SL	16	1.5	5	0	0
M16SL	16	1.5	8	0	0
PG7	12.5	0	5	0	0
PG7	12.5	0	7	0	0
PG9	15	0	5.5	0	0
PG9	15	0	7.5	0	0
PG9L	15	0	5.5	0	0
PG9L	15	0	7.5	0	0
G1/4	13.1	0	5	0	0
G1/4	13.1	0	8	0	0
NPT1/4	13.7	0	5.5	0	0
NPT1/4	13.7	0	6.8	0	0
M12A	12	1.5	5.5	0	0
M12A	12	1.5	8	0	0

Showing first 20 of 102 available sizes

Show All Sizes102

Contact us for complete specifications and custom sizing options
