Robot Bellows Straight Through Waterproof Joint

💰Pricing

R16 - R163

Prices per unit • All sizes from AD10 to AD54.5

Starting from

R16

Small sizes AD10-M12

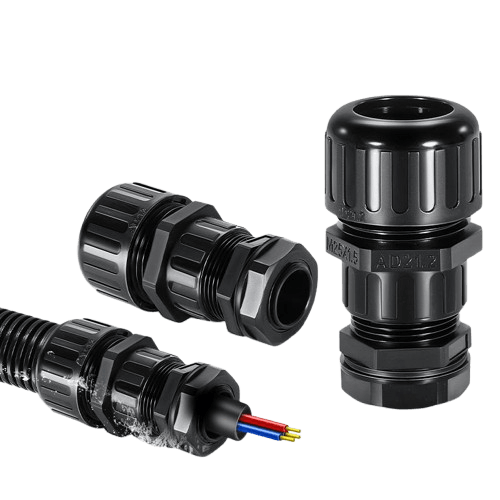

Professional dual-function locking waterproof joint for robot bellows applications. Features special clamping claw design with damping wave pipe for strong tensile strength. Achieves double waterproof protection for bellows and cables, improving waterproof performance and safety in mobile automation equipment.

Fast Installation

Quick-connect design saves time

International Shipping

Worldwide delivery via FedEx • Currency auto-converts to USD (International)

Technical Specifications

Material

UL approved Halogen-Free nylon PA66/fire (fire rating UL94V-0~V2, customizable). EPDM weather resistant rubber (cold and high temperature resistant rubber, alkali resistant, chemical and corrosion resistant rubber)

Working Temperature

-40°C to +110°C, short time up to 130°C

Thread Types

Metric (M)PG ThreadNPT ThreadG Thread (BSP)

Certifications

Key Features

Material: Thin part of plastic made of UL approved Halogen Free nylon PA66/fire rating UL94V-1 (V-0 fire rating nylon raw material can be customized)
Rubber part is made of EPDM weather resistant rubber (cold and high temperature resistant rubber can be customized)
Working temperature: -40°C~+110°C short time up to 130°C
Protection level: IP68
Product color: black, other colors can be customized
Product features: Special clamping claw design, clamping wave pipe tensile strength, can realize the bellows and cable double waterproof, improve waterproof performance, safer use
High performance waterproof nylon tube box joint can perfectly resist water pressure, oil proof and airtight, even if the bellows are pulled, and the product is widely used in the waterproof of mobile automation equipment

Complete Size Chart

Available in 148 different configurations.

Robot Bellows Straight Through Joint Structure Reference

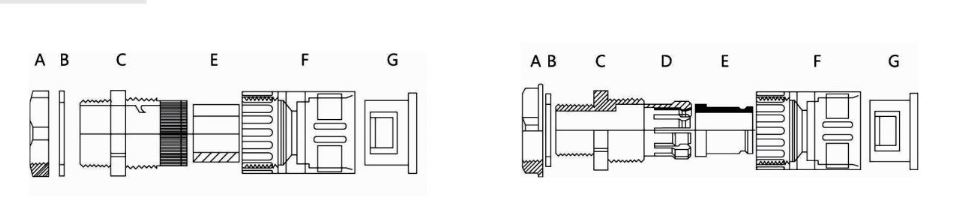

Robot Bellows Straight Through Waterproof Joint Structure Chart showing component dimensions: A, B, C, D, E, F, G

Structure diagram showing component dimensions: A, B, C, D, E, F, G corresponding to the specifications below

M PG G
Item No.(Inner thread quick insert/outer thread)	bellows	Accommodated PS Cable Glands
NCG-M12 -5
NCG-M12 -7
NCG-M12L -5
NCG-M12L -7
NCG-M16S -5
NCG-M16S -8
NCG-M16SL-5
NCG-M16SL-8
NCG-PG7 -5
NCG-PG7 -7
NCG-PG9 -5.5
NCG-PG9 -7.5
NCG-PG9L -5.5
NCG-PG9L -7.5
NCG-G1/4-5
NCG-G1/4-8
NCG-NPT1/4-5.5
NCG-NPT1/4 -6.8
NCG-M16AS -5.5-ST
NCG-M16AS-8-ST
