Bellows Bend Quick Insert Type

💰Pricing

R21 - R61

Prices per unit • All sizes from AD10 to AD54.5

Starting from

R21

Small sizes AD10-PG7

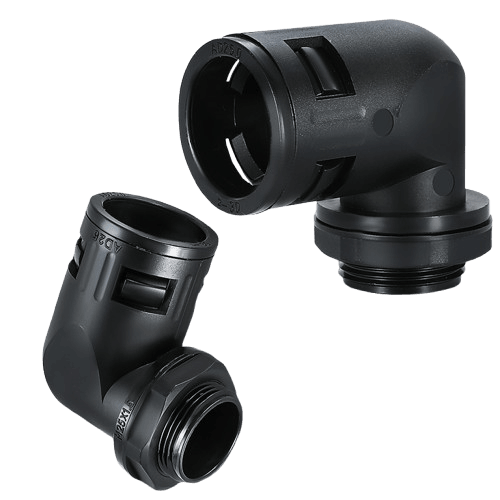

Professional bellows bend connector with quick insert mechanism for rapid installation. Features 90-degree bend capability with quick-connect design for efficient field installation and superior connection reliability.

Fast Installation

Quick-connect design saves time

International Shipping

Worldwide delivery via FedEx • Currency auto-converts to USD (International)

Technical Specifications

Material

UL approved Halogen Free nylon PA66 (fire rating UL/94V-2); EPDM weather-resistant rubber

Working Temperature

Static -40°C to 100°C

Certifications

Key Features

Screw specifications: Metric teeth, PG teeth, G(PF/BSP/PS) teeth, NPT teeth (customized)
Product material: The plastic part is made of UL approved Halogen Free nylon PA66 (fire rating UL/94V-2) (customizable)
Operating temperature: static -40°C to 100°C, or instant heat resistance to 120°C; Dynamic -20°C to 80°C, or instant heat resistance to 100°C
Product features: Special clamping claw design, clamping wave pipe tensile strength, super fast plug and unload, improve installation efficiency
Color type: Black, gray, other colors can be customized

Complete Size Chart

Available in 39 different configurations.

Bellows Bend Quick Insert Structure Reference

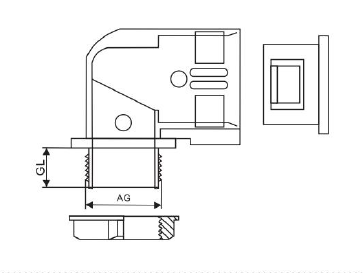

Bellows Bend Quick Insert Type Structure Chart showing dimensional references

Structure diagram showing dimensional measurements corresponding to the size chart below

Conduit Size	Thread	Thread O.D AG (mm)	Thread Outer Size (mm)	Thread Inside Size (mm)
M12*1.5	12	8	34	33
M16*1.5	16	11.5	37	37
M18*1.5	18	13.5	37	37
M20*1.5	20	15	37	37
M16*1.5	16	11.5	43	40
M18*1.5	18	13	43	40
M20*1.5	20	15	43	40
M20*1.5	20	15.5	46	45
M20*1.5	20	15.5	50	48
M25*1.5	25	20	50	48
M25*1.5	25	20	54	52
M25*1.5	25	20	58	57
M32*1.5	32	27	65	63
M36*1.5	36	29	65	63
M40*1.5	40	34	65	63
M40*1.5	40	34	80	73
M50*1.5	50	44	93	85
M63*1.5	63	55	93	85
PG7	12.3	9	34	33
PG9	15	11	37	37
