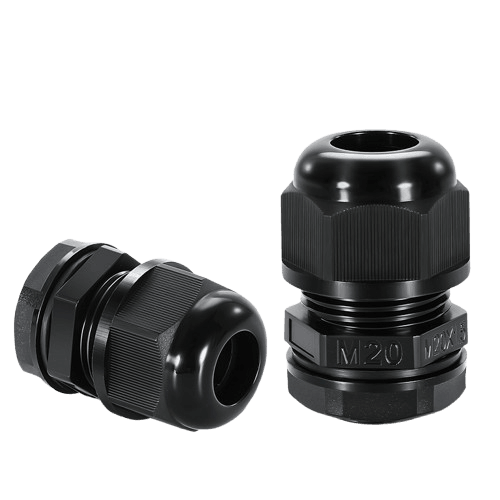

Cable Waterproof Joint (M/PG/NPT/G)
Professional cable waterproof joint connector with multiple thread options (Metric, PG, G/PF/BSP/PS, NPT). Features UL-approved nylon PA66 (UL94V-2) with customizable colors and EPDM weather-resistant rubber sealing. Wide operating temperature range from -40°C to 100°C (instant heat resistance to 120°C or dynamic -20°C to 80°C). IP68-10 protection level with excellent waterproof, dustproof, salt-resistant, and chemical resistance properties.
Fast Installation
Quick-connect design saves time
International Shipping
Worldwide delivery via FedEx • Currency auto-converts to USD (International)
Technical Specifications
Material
Working Temperature
Static: -40°C to 100°C, or instant heat resistance to 120°C; Dynamic: -20°C to 80°C, or instant heat resistance to 100°C
Thread Types
Certifications
Key Features
- Screw specifications: Metric, PG, G(PF)/BSP/PS (teeth), NPT teeth
- Product material: UL approved nylon PA66 (fire rating UL94V-2)
- Can be customized with L-approved V-0 fire grade nylon raw materials
- D part is made of EPDM weather-resistant rubber
- Cold and heat-resistant, acid, alkali, chemical and general solvent resistant
- Protection level: IP68-10
- Operating temperature: Static -40°C to 100°C, or instant heat resistance to 120°C
- Dynamic: -20°C to 80°C, or instant heat resistance to 100°C
- Features: Design of special clamping claw and clamping ring, wide range of clamping cable
- Strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents
Complete Size Chart
Available in 117 different configurations.
Cable Gland Structure Reference

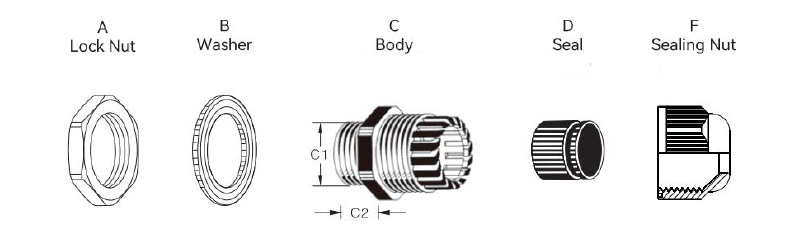

Structure diagram showing component dimensions corresponding to the size chart below
M PG NPT G | |||||||
|---|---|---|---|---|---|---|---|
| Thread | Item No. | Cable Range φ(mm) | Thread O.D C1 (mm) | Thread Length C2 (mm) | Spanner Size A&F(mm) | Std.Pkg (Pcs) | |
| M8*1.25 | NCG-M8-2.5 | 1-2.5 | 8 | 7.5 | 12 | 50 | |
| M8*1.25 | NCG-M8-4.8 | 2-4.8 | 8 | 7.5 | 12 | 50 | |
| M10*1.5 | NCG-M10-3 | 1-3 | 10 | 8 | 15 | 50 | |
| M10*1.5 | NCG-M10-6 | 3-6 | 10 | 8 | 15 | 50 | |
| M12*1.5 | NCG-M12S-3 | 1-3 | 12 | 8.5 | 18 | 50 | |
| M12*1.5 | NCG-M12S-6 | 3-6.5 | 12 | 8.5 | 18 | 50 | |
| M12*1.5 | NCG-M12SL-3 | 1-3 | 12 | 15 | 18 | 50 | |
| M12*1.5 | NCG-M12SL-6 | 3-6.5 | 12 | 15 | 18 | 50 | |
| M12*1.5 | NCG-M12-5 | 3-5.5 | 12 | 8.5 | 18 | 50 | |
| M12*1.5 | NCG-M12-7 | 4-8 | 12 | 8.5 | 18 | 50 | |
| M12*1.5 | NCG-M12L-5 | 3-5.5 | 12 | 15 | 18 | 50 | |
| M12*1.5 | NCG-M12L-7 | 4-8 | 12 | 15 | 18 | 50 | |
| M16*1.5 | NCG-M16S-5 | 3-5.5 | 16 | 10 | 22 | 50 | |
| M16*1.5 | NCG-M16S-8 | 4-8 | 16 | 10 | 22 | 50 | |
| M16*1.5 | NCG-M16SL-5 | 3-5.5 | 16 | 15 | 22 | 50 | |
| M16*1.5 | NCG-M16SL-8 | 4-8 | 16 | 15 | 22 | 50 | |
| M16*1.5 | NCG-M16-7 | 3-7 | 16 | 10 | 22 | 50 | |
| M16*1.5 | NCG-M16-10 | 5-10 | 16 | 10 | 22 | 50 | |
| M16*1.5 | NCG-M16L-7 | 3-7 | 16 | 15 | 22 | 50 | |
| M16*1.5 | NCG-M16L-10 | 5-10 | 16 | 15 | 22 | 50 | |
Showing first 20 of 117 available sizes
Contact us for complete specifications and custom sizing options
