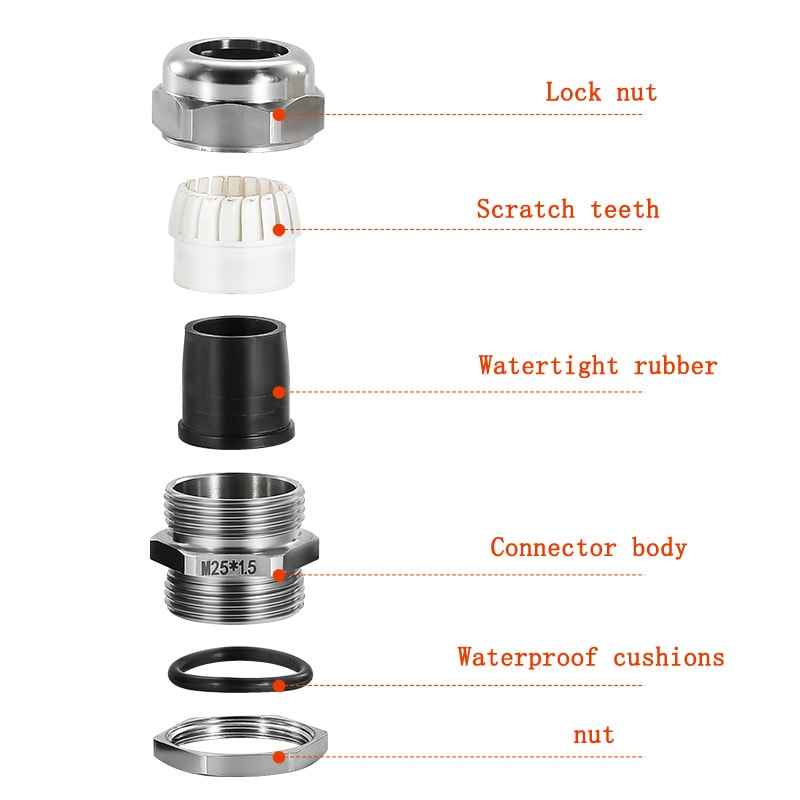

Metal Cable Waterproof Connector (PG/NPT/G)
Premium metal cable waterproof connector with nickel-plated brass body and EPDM weather-resistant rubber sealing. Features IP68-10 protection, operating temperature range -40°C to 100°C (instant heat resistance to 120°C), and multiple thread standards (Metric PG, NPT, G/BSP). UL-approved PA66 nylon claw with fire rating UL94V-2. Designed with special clamping claw and ring for wide cable range, strong tension resistance, and excellent dustproof, waterproof, salt, acid, alcohol, oil, and grease resistance.
Protection Rating
IP68-10 rated for harsh environments
Fast Installation
Quick-connect design saves time
Size Range
PG7 to PG100 (comprehensive range available)
International Shipping
Worldwide delivery via FedEx • Currency auto-converts to USD (International)
Technical Specifications
Material
Working Temperature
-40°C to 100°C (instant heat resistance to 120°C, customizable -60°C to 220°C)
Thread Types
Certifications
Key Features
- Screw specifications: Metric PG, G(PF/BSP/PS) teeth, NPT teeth
- Body made of brass nickel plating
- Part E: UL-approved nylon PA66 (fire rating UL94V-2)
- B.D part: EPDM weather-resistant rubber
- Protection level IP68-10
- Operating temperature: -40°C to 100°C
- Instant heat resistance to 120°C (customizable -60°C to 220°C)
- Special clamping claw and ring design
- Wide range of clamping cable
- Strong tension resistance
- Waterproof, dustproof, salt resistance
- Weak acid, alcohol, oil, grease and general solvents resistance
Complete Size Chart
Available in 33 different configurations.

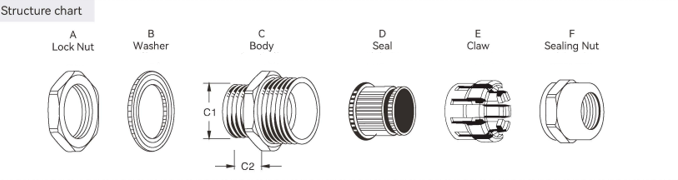

Connector Structure Reference
Structure diagram showing connector components: A-Lock Nut, B-Washer, C-Body, D-Seal, E-Claw, F-Sealing Nut
| Item No. | PG | NPT | G | Threading Range |
|---|---|---|---|---|
| JG-T-M12*1.5 | PG7 | 3~6.5 | ||
| JG-T-M14*1.5 | PG7 | NPT 1/4" | G 1/4" | 3~6.5 |
| JG-T-M16*1.5 | PG9 | G 3/8" | 4~8 | |
| JG-T-M18*1.5 | PG11 | 5~10 | ||
| JG-T-M20*1.5 | PG13.5 | G 1/2" | 6~12 | |
| JG-T-M22*1.5 | PG16 | 10~14 | ||
| JG-T-M24*1.5 | PG19 | 10~14 | ||
| JG-T-M25*1.5 | PG19 | 10~14 | ||
| JG-T-M25*1.5 | PG19 | 12~16 | ||
| JG-T-M25*1.5 | PG21 | 13~18 | ||
| JG-T-M27*2 | PG21 | G 3/4" | 13~18 | |
| JG-T-M28 | PG25 | 13~18 | ||
| JG-T-M30*2 | PG25 | 13~18 | ||
| JG-T-M30*2 | PG27 | 16~20 | ||
| JG-T-M32*1.5 | PG29 | 16~22 | ||
| JG-T-M33*2 | PG29 | G 1" | 18~25 | |
| JG-T-M33*2 | PG36 | 18~25 | ||
| JG-T-M36*2 | PG36 | 18~25 | ||
| JG-T-M40*1.5 | PG42 | 21~26 | ||
| JG-T-M42*2 | PG42 | 21~26 |
Showing first 20 of 33 available sizes
Contact us for complete specifications and custom sizing options
