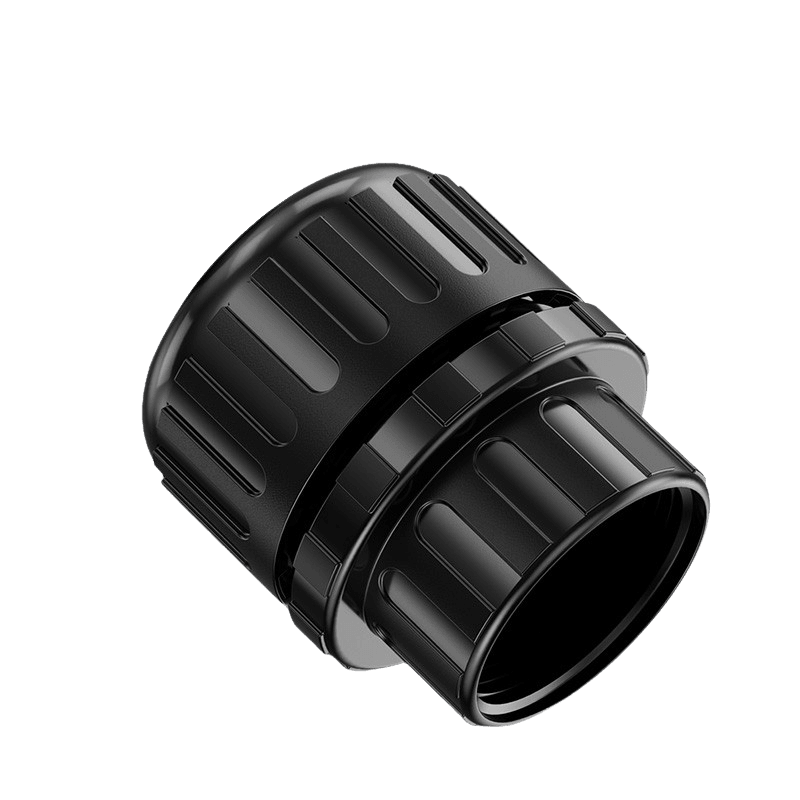

Waterproof Joint with Corrugated Internal Thread
Professional waterproof joint featuring corrugated internal thread design for superior grip and sealing performance. Engineered for demanding industrial applications requiring robust threaded connections.
Fast Installation
Quick-connect design saves time
International Shipping
Worldwide delivery via FedEx • Currency auto-converts to USD (International)
Technical Specifications
Material
UL approved Halogen Free nylon PA66 (fire rating UL94V-2) and EPDM weather-resistant rubber
Working Temperature
Static -40°C to 100°C or instant heat resistance to 120°C; Dynamic -20°C to 80°C or instant heat resistance to 100°C
Certifications
Key Features
- Product material: The plastic part is made of UL approved Halogen Free nylon PA66 (fire rating UL94V-2); (Can be customized UL approved V-0 fire grade nylon raw materials)
- The rubber part is made of EPDM weather-resistant rubber. (Cold and high temperature rubber can be customized; High acid and alkali resistant, chemical and corrosion resistant rubber)
- Protection level: IP68
- Operating temperature: static -40°C to 100°C, or instant heat resistance to 120°C; Dynamic -20°C to 80°C, or instant heat resistance to 100°C
- Product Features: This high-performance waterproof nylon wave pipe joint is perfectly resistant to water pressure, and is a product that can completely maintain air tightness even when the bellows are pulled
- Products are widely used in mobile automation equipment waterproof, oil proof and airtight occasions
- Color type: Black, gray, other colors can be customized
Complete Size Chart
Available in 8 different configurations.
Corrugated Internal Thread Joint Structure Reference
Structure diagram showing component dimensions: C (Body), D (Seal), F (Sealing Nut) corresponding to the size chart below
| Conduit Size | Inner Size C1 (mm) | Thread Length C2 (mm) | Spanner size (mm) | |||
|---|---|---|---|---|---|---|
| AD13 | ||||||
| AD15.8 | ||||||
| AD18.5 | ||||||
| AD21.2 | ||||||
| AD25 | ||||||
| AD28.5 | ||||||
| AD34.5 | ||||||
| AD42.5 |
